加高HSX1210A超小型晶振,X12A032000B81H-HZ,智能手机6G晶振

加高HSX1210A超小型晶振,X12A032000B81H-HZ,智能手机6G晶振台湾HELE加高晶振,型号:HSX1210A,编码为:X12A032000B81H-HZ,频率为:32.000MHZ,小体积晶振尺寸:1.2x1.0mm,四脚贴片晶振石英晶体谐振器石英晶振,无源晶振,SMD石英晶体,无铅环保晶振。具有超小型,轻薄型,高品质晶振,高精度晶振,高性能晶振,耐热及耐环境特点。贴片晶振被广泛应用于:通讯设备,可穿戴设备,小型便捷式设备,无线网络,蓝牙模块,平板电脑,车载电子,游戏机设备,医疗设备,安防设备,数码电子等应用。
订购热线:86-0755-27839045

1

CTS-1

加高HSX1210A超小型晶振,X12A032000B81H-HZ,智能手机6G晶振台湾HELE加高晶振,型号:HSX1210A,编码为:X12A032000B81H-HZ,频率为:32.000MHZ,小体积晶振尺寸:1.2x1.0mm,四脚贴片晶振石英晶体谐振器石英晶振,无源晶振,SMD石英晶体,无铅环保晶振。具有超小型,轻薄型,高品质晶振,高精度晶振,高性能晶振,耐热及耐环境特点。贴片晶振被广泛应用于:通讯设备,可穿戴设备,小型便捷式设备,无线网络,蓝牙模块,平板电脑,车载电子,游戏机设备,医疗设备,安防设备,数码电子等应用。

2

Items Parameter
Nominal Frequency 32 MHz
Mode Fundamental
Frequency Tolerance (at. to 25 C) ±10ppm , ±20ppm , or Specify
Frequency Stability (Temp.) ±10ppm , ±20ppm , or Specify
Operating Temp. Range -30~+85 C
Load Capacitance 7pF Min.
Drive Level 10μW (100μW Max.)
Equivalent Series Resistance 150Ω Max.
Storage Temp. Range
        -40~+85℃

3

CTS-3

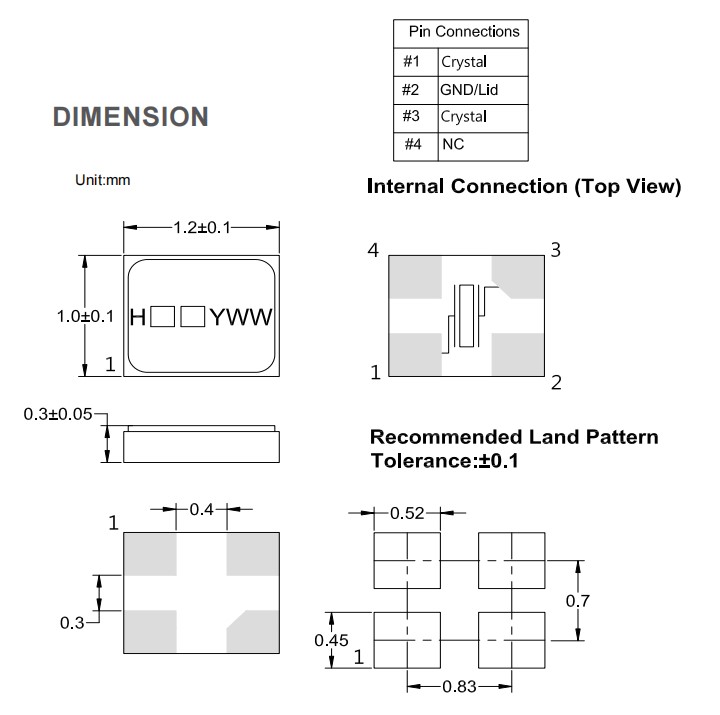

HSX1210A.1210


加高HSX1210A超小型晶振,X12A032000B81H-HZ,智能手机6G晶振

1210mm体积的晶振,可以说是目前小型数码产品的福音,目前超小型的智能手机里面所应用的就是小型的石英晶振,该产品最适用于无线通讯系统,无线局域网,已实现低相位噪声,低电压,低消费电流和高稳定度,超小型,质量轻等产品特点,产品本身编带包装方式,可对应自动高速贴片机应用,以及高温回流焊接(产品无铅对应),为无铅产品.

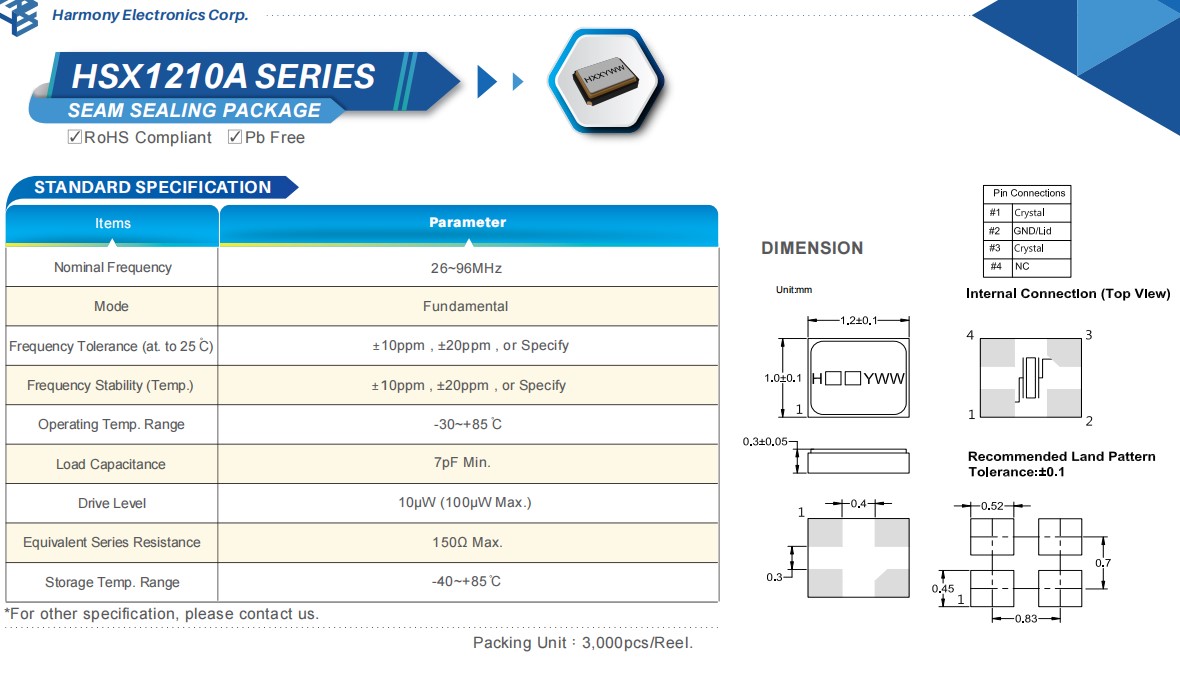

HSX1210A


编码 型号 晶振厂家 频率 描述
X3S027000BA1H-U HSX321S HELE加高 27 MHz HSX321S/27MHZ/10PF/10PPM/10PPM@-
X3S024000B91H-HS HSX321S HELE加高 24 MHz HSX321S/24MHZ/9PF/10PPM/15PPM@-4
X3S027120BA1H-X HSX321S HELE加高 27.12 MHz HSX321S/27.12MHZ/10PF/10PPM/20PP
X3S032000BC1HA-CHPZ HSX321S HELE加高 32 MHz HSX321S/32MHZ/12PF/10PPM/10PPM@-
X3S016000DI1H-HW HSX321S HELE加高 16 MHz HSX321S/16MHZ/18PF/20PPM/20PPM@-
X3S012000FI1H-HV HSX321S HELE加高 12 MHz HSX321S/12MHZ/18PF/30PPM/30PPM@-
X3S025000D81H-HU HSX321S HELE加高 25 MHz HSX321S/25MHZ/8PF/20PPM/20PPM@-4
X3S026000B91H-NZ HSX321S HELE加高 26 MHz HSX321S/26MHZ/9PF/10PPM/10PPM@-3
X2B026000M81H-HS HSX221SA HELE加高 26 MHz HSX221SA/26MHZ/8PF/7PPM/15PPM/-4
X2B016000BA1H-U HSX221SA HELE加高 16 MHz HSX221SA/16MHZ/10PF/10PPM/10PPM/
X2B012000BC1H-U HSX221SA HELE加高 12 MHz HSX221SA/12MHZ/12PF/10PPM/20PPM/
X2B040000BC1H-DHZ HSX221SA HELE加高 40 MHz HSX221SA/40MHZ/12PF/10PPM/10PPM/
X2C025000DZ1H-U HSX211S HELE加高 25 MHz HSX211S/25MHZ/6PF/20PPM/20PPM@-3
X2C032000BA1H-HZ HSX211S HELE加高 32 MHz HSX211S/32MHZ/10PF/10PPM/15PPM@-
X2C024000DZ1H-HU HSX211S HELE加高 24 MHz HSX211S/24MHZ/6PF/20PPM/20PPM@-3
X2C016000B81H-R HSX211S HELE加高 16 MHz HSX211S/16MHZ/8PF/10PPM/10PPM@-2
X2C026000BC1H-Z HSX211S HELE加高 26 MHz HSX211S/26MHZ/12PF/10PPM/10PPM@-
X1C032000B81H-HR HSX111S HELE加高 32 MHz HSX111S/32MHZ/8PF/10PPM/10PPM@-2
X1C024000B81H-HV HSX111S HELE加高 24 MHz HSX111S/24MHZ/8PF/10PPM/30PPM@-4
X2C048000L71HH-CEHZ HSX211S HELE加高 48 MHz HSX211S/48MHZ/11.1PF/8PPM/14PPM/
X2R026000BZ1HAZ-DHPZ HSX221SR HELE加高 26 MHz HSX221SR/26MHZ/7PF/10PPM/-30~105
X1R038400B81HA-CEHPZ HSX111SR HELE加高 38.4 MHz HSX111SR/38.4MHZ/8PF/10PPM/-40~1
X2U026000B81HBZ-DHPZ HSX211SR HELE加高 26 MHz HSX211SR/26MHZ/8PF/10PPM/-40~105
X2R026000B91HZ-DEHPZ HSX221SR HELE加高 26 MHz HSX221SR/26MHZ/9PF/10PPM/-30~85C
X2R019200BZ1H-CHZ HSX221SR HELE加高 19.2 MHz HSX221SR/19.2MHZ/7PF/10PPM/-30~8
X2U019200BZ1H-CEHQZ HSX211SR HELE加高 19.2 MHz HSX211SR/19.2MHZ/7PF/10PPM/-40~1
X2U038400B81H-EPQZ HSX211SR HELE加高 38.4 MHz HSX211SR/38.4MHZ/8PF/10PPM/-30~1
X1R052000B81HZ-DEHPZ HSX111SR HELE加高 52 MHz HSX111SR/52MHZ/8PF/10PPM/-40~105
X12A040000BZ1H-HZ HSX1210A HELE加高 40 MHz HSX1210A/40MHZ/6PF/10PPM/12PPM/-
X12A032000B81H-HZ HSX1210A HELE加高 32 MHz HSX1210A/32MHZ/8PF/10PPM/10PPM/-
X3S012000BK1H HSX321S HELE加高 12MHz 12MHz ±10ppm SMD-3225_4P RoHS
X3S025000BK1H HSX321S HELE加高 25MHz 25MHz ±10ppm SMD-3225_4P RoHS
X3S038400B91H-HU HSX321S HELE加高 38.4MHz 38.4MHz ±10ppm SMD-3225_4P RoHS
X2B012000DC1H-X HSX221SA 加高晶振 12MHz 12MHz ±20ppm SMD-2520_4P RoHS
X2B016000B91H-HU HSX221SA HELE加高 16MHz 16MHz ±10ppm SMD-2520_4P RoHS
X3S037400B91H-Z HSX321S HELE加高 37.4MHz 37.4MHz ±10ppm SMD-3225_4P RoHS
X3S024000B91HA-R HSX321S HELE加高 24MHz 24MHz ±10ppm SMD-3225_4P RoHS
X3S024000BK1H HSX321S HELE加高 24MHz 24MHz ±10ppm SMD-3225_4P RoHS
X2B027000BC1H-HU HSX221SA HELE加高 27MHz 27MHz ±10ppm SMD-2520_4P RoHS
X3S024000BG1HA-Z HSX321S HELE加高 24MHz 24MHz ±10ppm SMD-3225_4P RoHS
X3S040000BA1H-R HSX321S HELE加高 40MHz 40MHz ±10ppm SMD-3225_4P RoHS
X3S026000BB1H-CHZ HSX321S HELE加高 26MHz 26MHz ±10ppm SMD-3225_4P RoHS
X3S013560BK1H-V HSX321S HELE加高 13.56MHz 13.56MHz ±10ppm SMD-3225_4P RoHS
X2C048000L71HA-CEHZ HSX211S-AU HELE加高 48MHz 48MHz ±8ppm SMD-2016_4P RoHS
X3S032000BC1HZ-NU HSX321S HELE加高 32MHz 32MHz ±10ppm SMD-3225_4P RoHS
X3S040000BF1H-Z HSX321S HELE加高 40MHz 40MHz ±10ppm SMD-3225-4P RoHS
X3S040000FA1H HSX321S HELE加高 40MHz 40MHz ±30ppm SMD-3225_4P RoHS
X2B026000B91H-HZ HSX221SA HELE加高 26MHz 26MHz ±10ppm SMD-2520_4P RoHS
X3S012000DC1H-V HSX321S HELE加高 12MHz 12MHz ±20ppm SMD-3225_4P RoHS
X2B026000B71HZ-HPR HSX221SA HELE加高 26MHz 26MHz ±10ppm SMD-2520_4P RoHS
X3S024000BA1H-V HSX321S HELE加高 24MHz 24MHz ±10ppm SMD-3225_4P RoHS
X3S024000BC1HA-V HSX321S HELE加高 24MHz 24MHz ±10ppm SMD-3225_4P RoHS
X2C026000B91H-V HSX211S HELE加高 26MHz 26MHz ±10ppm SMD-2016_4P RoHS
X3S026000BG1S-HU HSX321S HELE加高 26MHz 26MHz ±10ppm SMD-3225_4P RoHS
XSA012000DK1H-OX HC-49S HELE加高 12MHz 12MHz ±20ppm HC-49SMD RoHS
X3S012000BA1H-V HSX321S HELE加高 12MHz 12MHz ±10ppm SMD-3225_4P RoHS
X3S026000B71HZ-HPR HSX321S HELE加高 26MHz 26MHz ±10ppm SMD-3225-4P RoHS
X3S02863ADK1HA-X HSX321S HELE加高 28.63636MHz 28.63636MHz ±20ppm SMD-3225_4P RoHS
X2B026000B71HZ HSX221SA HELE加高 26MHz 26MHz ±7ppm SMD-2520_4P RoHS
X2B040000BF1H-HZ HSX221SA HELE加高 40MHz 40MHz ±10ppm SMD-2520_4P RoHS
X3S026000BC1H-NR HSX321S HELE加高 26MHz 26MHz ±10ppm SMD-3225_4P RoHS
X3S013000BA1HA-U HSX321S HELE加高 13MHz 13MHz ±10ppm SMD-3225_4P RoHS
X5H008000FC1H-X HSX530G HELE加高 8MHz 8MHz ±30ppm SMD-5032_2P RoHS
X5H027000DA1H-W HSX530G HELE加高 27MHz 27MHz ±20ppm SMD-5032_2P RoHS
XSA008000DC1H-OX HC-49S HELE加高 8MHz 8MHz ±20ppm HC-49SMD RoHS
X3S016000B91H-X HSX321S HELE加高 16MHz 16MHz ±10ppm SMD-3225_4P RoHS
X1H027000DK1H-HV HSX321S HELE加高 27MHz SMD_5032-4P RoHS
X2B024000BCIH-HV HSX221SA HELE加高 24MHz 24MHz ±10ppm SMD-2520_4P RoHS
X5H012288FI1H HSX530G HELE加高 12.288MHz 12.288MHz ±30ppm SMD-5032_2P RoHS
X3S026000B71HZ-NHPZ HSX321S HELE加高 26MHz 26MHz ±10ppm SMD-3225_4P RoHS
X1C026000B81H-V HSX111AU HELE加高 26.000MHZ SMD,1.65x1.25mm RoHS
X2C024000BA1H HSX211S-AU HELE加高 24.000MHZ SMD-2016 RoHS
X2C024000B71H-V HSX211S-AU HELE加高 24.000MHZ SMD,2.0x1.6mm RoHS
X2R026000BZ1HZ-DEHPZ HSX221SR HELE加高 26.000MHZ SMD-2520 RoHS
X3S012000DK1HA-X HSX321S HELE加高 12.000MHZ SMD-3225 RoHS
X2B050000BC1H-V HSX221SA HELE加高 50.000MHZ SMD,2.5x2.0mm RoHS
X2C024000FA1H-X HSX211S-AU HELE加高 24MHZ SMD,2.0x1.6mm RoHS
X3S026000BZ1HZ-HU HSX321S HELE加高 26.000MHZ SMD-3225 RoHS
X3S027000BK1H-V HSX321S HELE加高 27MHZ SMD,3.2x2.5mm RoHS
X1C048000FK1H-HX HSX111AU HELE加高 48.000MHZ SMD,1.65x1.25mm RoHS
X3S030000BK1H HSX321S HELE加高 30.000MHZ SMD,3.2x2.5mm RoHS
X3S026000B81H-NCHZ HSX321S HELE加高 26.000MHZ SMD,3.2x2.5mm RoHS
X2C016000B81H-HPU HSX211S-AU HELE加高 16.000MHZ SMD-2016 RoHS
X3S013560DA1H-HU HSX321S HELE加高 13.560MHz SMD,3.2x2.5mm RoHS
X2C024000B91H-HZ HSX211S-AU HELE加高 24.000MHZ SMD,2.0x1.6mm RoHS
X2C037400BG1H-U HSX211S-AU HELE加高 37.400MHZ SMD-2016 RoHS
X3S024000DC1H HSX321S HELE加高 24.000MHZ SMD,3.2x2.5mm RoHS
X2B040000BF1H-HT HSX221SA HELE加高 40.000MHZ SMD-2520 RoHS
X2B030000BA1H-U HSX221SA HELE加高 30.000MHz SMD,2.5x2.0mm RoHS
X2B026000B91H-HR HSX221SA HELE加高 26.000MHZ SMD,2.5x2.0mm RoHS
X3S028375DK1H HSX321S HELE加高 28.375MHZ SMD,3.2x2.5mm RoHS
X3S050000FK1H HSX321S HELE加高 50.000MHZ SMD,3.2x2.5mm RoHS
X2B038400BA1H-U HSX221SA HELE加高 38.400MHZ SMD-2520 RoHS
X3S012000FK1H-HV HSX321S HELE加高 12.000MHZ SMD-3225 RoHS
X3S032000BA1H-R HSX321S HELE加高 32.000MHZ SMD,3.2x2.5mm RoHS
X2B040000B91H-U HSX221SA HELE加高 40.000MHZ SMD,2.5x2.0mm RoHS
X3S012000DK1H HSX321S HELE加高 12.000MHZ SMD-3225 RoHS
X3S020000BI1H-HZ HSX321S HELE加高 20.000MHZ SMD,3.2x2.5mm RoHS
X2B032000C81H-HU HSX221SA HELE加高 32.000MHZ SMD,2.5x2.0mm RoHS
X3S030000BA1H-S HSX321S HELE加高 30.000M SMD,3.2x2.5mm RoHS
X3S030000BA1H-V HSX321S HELE加高 30.000MHZ SMD-3225 RoHS
X3S026000B71HZ-NCHPR HSX321S HELE加高 26.000MHZ SMD,3.2x2.5mm RoHS
X2B012000B91H-U HSX221SA HELE加高 12.000MHZ SMD,2.5x2.0mm RoHS
X2C027120FA1H-HV HSX211S-AU HELE加高 27.120MHZ SMD,2.0x1.6mm RoHS
X1C032000B81H-HU HSX111AU HELE加高 32.000MHZ SMD,1.65x1.25mm RoHS
X2B030000BA1H-HW HSX221SA HELE加高 30MHZ SMD,2.5x2.0mm RoHS
X3S011059FK1H-V HSX321S HELE加高 11.0592MHZ SMD-3225 RoHS
X2B026000B91H-HV HSX221SA HELE加高 26.000MHZ SMD-2520 RoHS
X3S032000LK1H-Z HSX321S HELE加高 32.000MHZ SMD,3.2x2.5mm RoHS
X2C040000B91HA-Z HSX211S-AU HELE加高 40.000MHZ SMD-2016 RoHS
X2B026000BC1H-Z HSX221SA HELE加高 26.000MHZ SMD,2.5x2.0mm RoHS
X2B016000BC1H-HV HSX221SA HELE加高 16.000MHZ SMD,2.5x2.0mm RoHS
X2C016000B91H-R HSX211S-AU HELE加高 16.000MHZ SMD,2.0x1.6mm RoHS
X3S032000BG1H-Z HSX321S HELE加高 32.000MHZ SMD,3.2x2.5mm RoHS
X3S036000BG1H-V HSX321S HELE加高 36.000MHZ SMD-3225 RoHS
X2B019200BZ1H-CHZ HSX221SA HELE加高 19.200MHZ SMD,2.5x2.0mm RoHS
X2C032000BA1HA-U HSX211S-AU HELE加高 32 MHz SMD,2.0x1.6mm RoHS
X2B026000B91H-U HSX221SA HELE加高 26.000MHZ SMD,2.5x2.0mm RoHS
X2B026000L91H-S HSX221SA HELE加高 26.000MHZ SMD,2.5x2.0mm RoHS
X2C048000L71H-CEHZ HSX211S-AU HELE加高 48.000MHZ SMD,2.0x1.6mm RoHS
X3S027000FC1H-V HSX321S HELE加高 27MHZ SMD,3.2x2.5mm RoHS
X2B030000FA1H-X HSX221SA HELE加高 30.000MHZ SMD-2520 RoHS
X2C032000BC1H-R HSX211S-AU HELE加高 32.000MHZ SMD,2.0x1.6mm RoHS
X3S012000BI1H-R HSX321S HELE加高 12.000MHZ SMD-3225 RoHS
X3S012000DG1H-H HSX321S HELE加高 12.000MHZ  SMD-3225 RoHS
X3S030000BA1H-U HSX321S HELE加高 30.000M SMD,3.2x2.5mm RoHS
X2B024000FK1H-V HSX221SA HELE加高 24.000MHZ SMD,2.5x2.0mm RoHS
X3Z01474ADK1H-U HSX321S HELE加高 14.7456MHZ SMD,3.2x2.5mm RoHS
X1C026000BC1H-HZ HSX111AU HELE加高 26.000MHZ SMD,1.65x1.25mm RoHS
X2B026000B81H-CHZ HSX221SA HELE加高 26.000MHZ SMD,2.5x2.0mm RoHS
X3S020000BA1H-V HSX321S HELE加高 20.000MHZ SMD,3.2x2.5mm RoHS
X3Z02863ADK1H-U HSX321S HELE加高 28.63636MHZ SMD,3.2x2.5mm RoHS
X3S02863ADA1H-W HSX321S HELE加高 28.63636MHZ SMD,3.2x2.5mm RoHS
X3S010000BK1H-X HSX321S HELE加高 10.000MHZ SMD-3225 RoHS
X2C038400BA1H-HZ HSX211S-AU HELE加高 38.400MHZ SMD-2016 RoHS
X3S008000FA1H-X HSX321S HELE加高 8.000MHZ SMD,3.2x2.5mm RoHS
X2B02863ADC1H-W HSX221SA HELE加高 28.63636MHZ SMD,2.5x2.0mm RoHS
X2B032000D81H-U HSX221SA HELE加高 32.000MHZ SMD,2.5x2.0mm RoHS
X3S027000BK1H HSX321S HELE加高 27MHZ SMD,3.2x2.5mm RoHS
X2B025000BI1H-U HSX221SA HELE加高 25.000MHZ SMD,2.5x2.0mm RoHS
X2C032000B81H-HS HSX211S-AU HELE加高 32MHZ SMD,2.0x1.6mm RoHS
X3S011059BA1H-V HSX321S HELE加高 11.0592MHZ SMD,3.2x2.5mm RoHS
X3S012800DF1H-V HSX321S HELE加高 12.8MHz SMD,3.2x2.5mm RoHS
X1H008000DC1H-U HSX531S HELE加高 8MHz 8MHz ±20ppm SMD_5032-4P RoHS
XSA004000DK1HA-OX HC-49S HELE加高 4MHz 4MHz ±20ppm SMD RoHS
X2C026000B71H-HZ HSX211S-AU HELE加高 26MHz 26MHz ±10ppm SMD-2016_4P RoHS
X3S008000BK1H-U HSX321S HELE加高 8.000MHz SMD,3.2x2.5mm RoHS
X2C048000BA1H-HZ HSX211S-AU HELE加高 48.000MHZ SMD,2.0x1.6mm RoHS

IDT-6


                服务热线:0755-27839045

                Q Q联系:262320519

                邮箱:szceob2b@163.com

跟此产品相关的产品 / Related Products

MIH302548AH-12.000MHZ-T,7050mm,Mmdcomp导航仪晶振
MIH302548AH-12.000MHZ-T,7050mm,Mmdcomp导航仪晶振
MIH302548AH-12.000MHZ-T,7050mm,Mmdcomp导航仪晶振,美国进口晶振,Mmdcomp晶振,麦迪康晶振,型号:MIH系列石英晶振,编码为:MIH302548AH-12.000MHZ-T,频率为:12.000MHz,电压:3.3V,频率稳定性:±25ppm,HCMOS输出晶振,工作温度范围:-40℃至+85℃,小体积晶振尺寸:7.0x5.0mm封装,四脚贴片晶振,有源晶振,7050晶振,石英晶体振荡器,石英晶振,SMD晶振,符合RoHS。具有超小型,轻薄型,高品质,高精度,高性能,耐热及耐环境等特点。应用于:通讯设备晶振,无线蓝牙晶振,汽车电子晶振,导航仪晶振,医疗设备晶振,智能家居等应用。
PM3MM 30.000000,PM系列7050mm谐振器,MtronPTI晶体
PM3MM 30.000000,PM系列7050mm谐振器,MtronPTI晶体
PM3MM 30.000000,PM系列7050mm谐振器,MtronPTI晶体,美国进口晶振,MtronPTI晶振,麦特伦皮晶振,型号:PM系列晶振,编码为:PM3MM 30.000000石英晶振,频率:30MHz,负载电容:18pF,频率稳定性:±50ppm,频率容差:±50ppm,工作温度范围:-55℃至+105℃,小体积晶振尺寸:7.0x5.0mm表面安封晶体,四脚贴片晶振,石英晶体,7050晶振,耐高温晶振,无源晶振,石英晶体谐振器,SMD晶振,具有超小型,轻薄型,高品质,高性能,高质量,高可靠性,耐热及耐环境等特点。适用于:通讯设备晶振,车载控制器晶振,仪器设备晶振,仪器设备晶振,平板电脑等应用。
M12536JM 50.000000,3225mm,50MHz,MtronPTI手持式电子设备晶振
M12536JM 50.000000,3225mm,50MHz,MtronPTI手持式电子设备晶振
M12536JM 50.000000,3225mm,50MHz,MtronPTI手持式电子设备晶振,MtronPTI晶振,麦特伦皮晶振,美国进口晶振,型号:M1253系列晶振,编码为:M12536JM 50.000000,频率:50MHz,负载电容:18pF,频率稳定性:±50ppm,频率容差:±30ppm,工作温度范围:-20℃至+70℃,小体积晶振尺寸:3.2x2.5mm封装,四脚贴片晶振,石英晶振,3225晶振,无源晶振,石英晶体谐振器,SMD晶振,具有超小型,轻薄型,高品质,高性能,高质量,高可靠性等特点。适用于:通讯设备晶振,手持式电子设备晶振,无线蓝牙晶振,仪器设备晶振,智能家居晶振,平板电脑等应用。
晶振平台产品中心 Product Center

国内晶振厂家

日产进口晶振

中国台产晶振

欧美石英晶振

32.768K晶振

有源晶振

国产品牌分类

联系客服
咨询热线:0755-27839045

手机:13826527865

Q  Q:262320519qq

邮箱:szceob2b@163.com
