SAX32410FA4B-12.000M,Suntsu贴片晶振,蓝牙音频晶振
Suntsu松图SAX32410FA4B-12.000M贴片晶振,12MHz谐振频率适配便携蓝牙晶振,户外迷你音频设备.成熟压电晶片振荡稳定,宽温环境下频率波动小,应对户外温差,轻微震动工况,一体化陶瓷密封防尘防潮,抵御潮湿水汽侵蚀,长期播放无音频同步偏移问题.标准3225贴片尺寸节约主板空间,简化轻薄音箱结构设计,无铅环保符合出口规范,流水线焊接良率稳定.电路适配各类蓝牙音频处理芯片,硬件调试简单,大幅缩短产品开发周期.原厂严苛电气筛选,老化漂移低,大批量供货稳定,兼顾音频音质稳定性与量产成本优势.
SAX32410FA4B-12.000M,Suntsu贴片晶振,蓝牙音频晶振
|
原厂型号 Original model ：
|
SAX32410FA4B-12.000M
|
|
品牌 brand ：
|
SUNTSU晶振
|
|
型号名称 Model name：
|
SAX324
|
|
Type 系列：
|
MHz Crystal
|
|
频率 frequency ：
|
12M
|
|
Frequency Stability频率稳定度
|
-
|
|
frequency tolerance频率容差
|
±10ppm
|
|
Load capacitance 负载电容
|
10pF
|
|

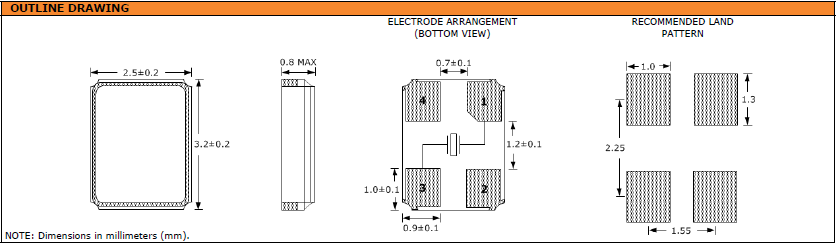

Size / Dimension 尺寸
|
3225mm
|
|
Package Height 厚度
|
0.6mm
|
|
ESR (Equivalent Series Resistance)ESR（等效串联电阻）
|
-
|
|
Operating Temperature 工作温度
|
-40+125°C
|
|
Termination 脚位
|
4-Pad
|
|
Package Type 封装类型
|
4-SMD
|
|
Packaging 包装
|
Tape and Reel
|
|
Mounting Style 安装方式
|
Surface Mount
|
SAX32410FA4B-12.000M,Suntsu贴片晶振,蓝牙音频晶振
|
产品编码
|
品牌
|
型号
|
频率
|
频率公差
|
负载电容
|
工作温度范围
|
|
LFXTAL003000
|
IQD伊克德晶振
|
85SMX
|
32.768KHz
|
±20ppm
|
12.50pF
|
-40°C to 85°C
|
|
LFXTAL016178
|
IQD伊克德晶振
|
85SMX
|
32.768KHz
|
±20ppm
|
6.00pF
|
-40°C to 85°C
|
|
LFXTAL016178REEL
|
IQD伊克德晶振
|
85SMX
|
32.768KHz
|
±20ppm
|
6pF
|
-40°C ~ 85°C
|
|
LFXTAL003000REEL
|
IQD伊克德晶振
|
85SMX
|
32.768KHz
|
±20ppm
|
12.5pF
|
-40°C ~ 85°C
|
|
LFXTAL050632REEL
|
IQD伊克德晶振
|
85SMX
|
32.768KHz
|
±10ppm
|
6pF
|
-40°C ~ 85°C
|
|
LFXTAL003000BULK
|
晶振厂家
|
85SMX
|
32.768KHz
|
±20ppm
|
12.5pF
|
-40°C ~ 85°C
|
|
LFXTAL016178BULK
|
IQD伊克德晶振
|
85SMX
|
32.768KHz
|
±20ppm
|
6pF
|
-40°C ~ 85°C
|
|
LFXTAL015822REEL
|
IQD伊克德晶振
|
90SMX
|
32.768KHz
|
±20ppm
|
6pF
|
-40°C ~ 85°C
|
|
LFXTAL003003REEL
|
IQD伊克德晶振
|
91SMX
|
32.768KHz
|
±20ppm
|
12.5pF
|
-40°C ~ 85°C
|
|
LFXTAL003004REEL
|
IQD伊克德晶振
|
90SMX
|
32.768KHz
|
±20ppm
|
12.5pF
|
-40°C ~ 85°C
|
|
LFXTAL010193REEL
|
IQD伊克德晶振
|
91SMX
|
32.768KHz
|
±20ppm
|
6pF
|
-40°C ~ 85°C
|
|
LFXTAL010193BULK
|
IQD伊克德晶振
|
91SMX
|
32.768KHz
|
±20ppm
|
6pF
|
-40°C ~ 85°C
|
|
LFXTAL003003BULK
|
IQD伊克德晶振
|
91SMX
|
32.768KHz
|
±20ppm
|
12.5pF
|
-40°C ~ 85°C
|
|
LFXTAL015822BULK
|
IQD伊克德晶振
|
90SMX
|
32.768KHz
|
±20ppm
|
6pF
|
-40°C ~ 85°C
|
|
LFXTAL003004BULK
|
IQD伊克德晶振
|
90SMX
|
32.768KHz
|
±20ppm
|
12.5pF
|
-40°C ~ 85°C
|
|
LFXTAL023562
|
IQD伊克德晶振
|
85SMX
|
32.768KHz
|
±30ppm
|
12.5pF
|
-40°C ~ 85°C
|
