ABM11-32.000MHZ-D2X-T3,2016mm晶振,Abracon晶振
康华尔电子作为Abracon安波康正规授权代理商,原装现货供应ABM11-32.000MHZ-D2X-T3型号2016微型贴片晶振,是欧美进口晶振品牌高频无源晶振的高性价比优选.该款Abracon原装晶振采用2.0×1.6×0.59mm超轻2016微型封装,体积小巧轻薄,完美适配各类小型化,高密度PCB布线设计.标准32MHz高频输出,频率精度高达±20ppm,温漂系数极低,在常规工作区间频率稳定性优异.依托Abracon美式精密晶片工艺,器件等效串联电阻低,谐振损耗小,信号输出纯净无抖动,无杂波,抗电磁干扰能力出众.产品支持-40℃至+85℃宽温稳定运行,高低温工况下无频偏,无跳频,长期老化误差可控,持续工作性能稳定.全系符合RoHS无铅环保标准,适配自动化量产贴装,品质对标高端工业级标准,咨询热线:0755-27838351.
ABM11-32.000MHZ-D2X-T3,2016mm晶振,Abracon晶振
|
原厂型号 Original model ：
|
ABM11-32.000MHZ-D2X-T3
|
|
品牌 brand ：
|
Abracon
|
|
型号名称 Model name：
|
ABM11晶振
|
|
Type 系列：
|
MHz Crystal
|
|
频率 frequency ：
|
32M
|
|
Frequency Stability频率稳定度
|
-
|
|
frequency tolerance频率容差
|
±20PPm
|
|
Load capacitance 负载电容
|
10pF
|
|

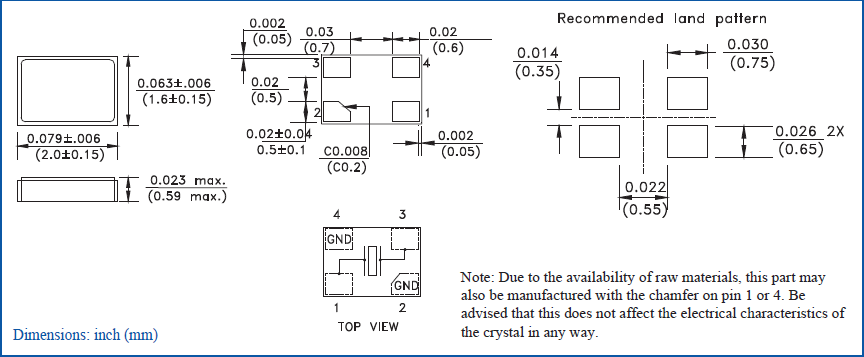

Size / Dimension 尺寸
|
2016
|
|
Package Height 厚度
|
0.59mm
|
|
ESR (Equivalent Series Resistance)ESR（等效串联电阻）
|
-
|
|
Operating Temperature 工作温度
|
-40°C ~ 85°C
|
|
Termination 脚位
|
4-Pad
|
|
Package Type 封装类型
|
4-Smd
|
|
Packaging 包装
|
Tape and Reel
|
|
Mounting Style 安装方式
|
Surface Mount
|
ABM11-32.000MHZ-D2X-T3,2016mm晶振,Abracon晶振
|
产品编码
|
品牌
|
型号
|
频率
|
频率公差
|
负载电容
|
工作温度范围
|
|
LFXTAL003000
|
IQD伊克德晶振
|
85SMX
|
32.768KHz
|
±20ppm
|
12.50pF
|
-40°C to 85°C
|
|
LFXTAL016178
|
IQD伊克德晶振
|
85SMX
|
32.768KHz
|
±20ppm
|
6.00pF
|
-40°C to 85°C
|
|
LFXTAL016178REEL
|
IQD伊克德晶振
|
85SMX
|
32.768KHz
|
±20ppm
|
6pF
|
-40°C ~ 85°C
|
|
LFXTAL003000REEL
|
IQD伊克德晶振
|
85SMX
|
32.768KHz
|
±20ppm
|
12.5pF
|
-40°C ~ 85°C
|
|
LFXTAL050632REEL
|
IQD伊克德晶振
|
85SMX
|
32.768KHz
|
±10ppm
|
6pF
|
-40°C ~ 85°C
|
|
LFXTAL003000BULK
|
晶振厂家
|
85SMX
|
32.768KHz
|
±20ppm
|
12.5pF
|
-40°C ~ 85°C
|
|
LFXTAL016178BULK
|
IQD伊克德晶振
|
85SMX
|
32.768KHz
|
±20ppm
|
6pF
|
-40°C ~ 85°C
|
|
LFXTAL015822REEL
|
IQD伊克德晶振
|
90SMX
|
32.768KHz
|
±20ppm
|
6pF
|
-40°C ~ 85°C
|
|
LFXTAL003003REEL
|
IQD伊克德晶振
|
91SMX
|
32.768KHz
|
±20ppm
|
12.5pF
|
-40°C ~ 85°C
|
|
LFXTAL003004REEL
|
IQD伊克德晶振
|
90SMX
|
32.768KHz
|
±20ppm
|
12.5pF
|
-40°C ~ 85°C
|
|
LFXTAL010193REEL
|
IQD伊克德晶振
|
91SMX
|
32.768KHz
|
±20ppm
|
6pF
|
-40°C ~ 85°C
|
|
LFXTAL010193BULK
|
IQD伊克德晶振
|
91SMX
|
32.768KHz
|
±20ppm
|
6pF
|
-40°C ~ 85°C
|
|
LFXTAL003003BULK
|
IQD伊克德晶振
|
91SMX
|
32.768KHz
|
±20ppm
|
12.5pF
|
-40°C ~ 85°C
|
|
LFXTAL015822BULK
|
IQD伊克德晶振
|
90SMX
|
32.768KHz
|
±20ppm
|
6pF
|
-40°C ~ 85°C
|
|
LFXTAL003004BULK
|
IQD伊克德晶振
|
90SMX
|
32.768KHz
|
±20ppm
|
12.5pF
|
-40°C ~ 85°C
|
|
LFXTAL023562
|
IQD伊克德晶振
|
85SMX
|
32.768KHz
|
±30ppm
|
12.5pF
|
-40°C ~ 85°C
|
