KDS轻薄型晶体,DSX1612S通信设备晶振,1ZZHAM26000AB0A

KDS轻薄型晶体,DSX1612S通信设备晶振,1ZZHAM26000AB0A，尺寸1.6*1.2mm,频率26MHZ，日本大真空晶振，大真空石英晶振，无源SMD晶振，1612mm超小型晶振，贴片石英晶振，石英水晶振动子，石英晶体谐振器，无源晶振，无源石英晶体，26MHZ贴片晶振，四脚贴片晶振，移动通信设备晶振，数字视听设备晶振，小型设备晶振，可穿戴设备晶振，无线模块晶振，高精度晶振，高质量晶振，低损耗晶振，低功耗晶振，具有高质量高精度的特点。

SMD晶振产品比较适合用于移动通信设备、近距离无线模块、数字视听设备、PC等新一代小型设备，以及可穿戴设备等领域。KDS轻薄型晶体,DSX1612S通信设备晶振,1ZZHAM26000AB0A.

订购热线：86-0755-27839045

CTS-1

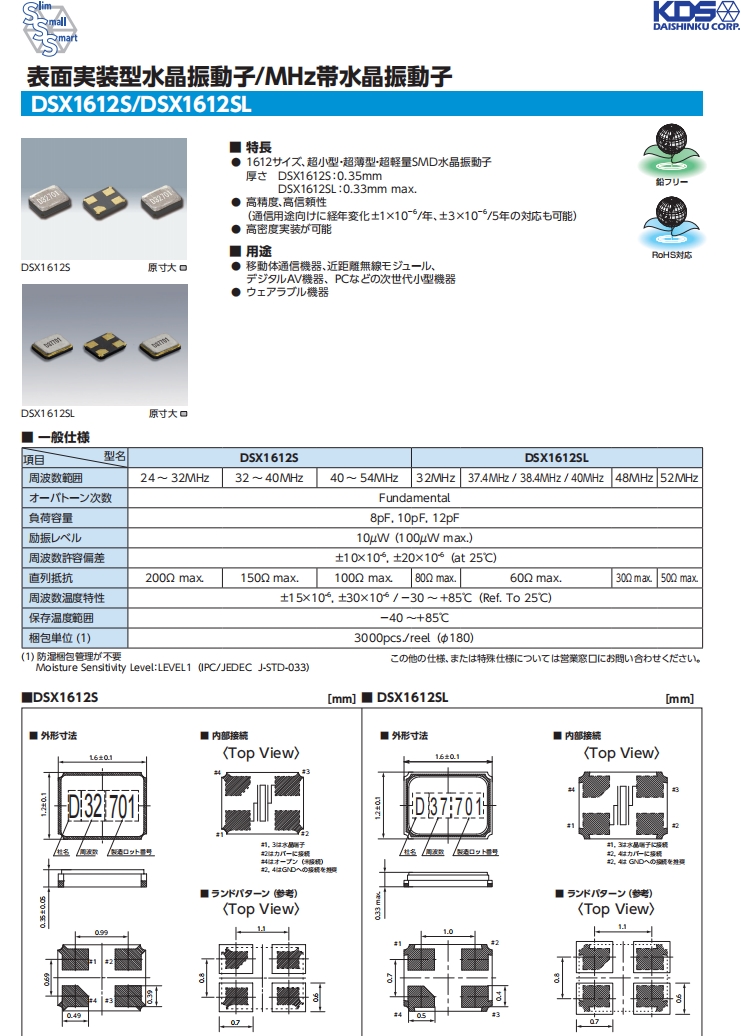

KDS轻薄型晶体,DSX1612S通信设备晶振,1ZZHAM26000AB0A 参数表

型号名称	DSX1612S
频率范围	26MHz	32~40MHz	40~54MHz
泛音阶	功能
负载容量	8pF，10pF，12pF
激励电平	10μW (100μW max.)
频率允许偏差	±10×10-6±20×10-6( at 25℃)
串联电阻	100ω最大。	50ω最大。
频率温度特性	±15×10-6±30×10-6/ −30~+85℃(Ref. To 25℃)
保存温度范围	−40~+85℃
包装单位(1)	3000pcs./reel(φ180 )

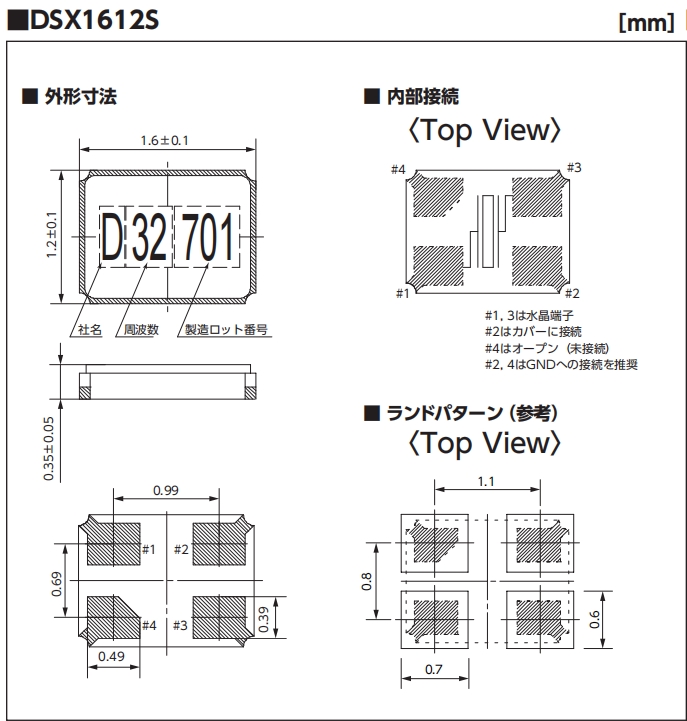

KDS轻薄型晶体,DSX1612S通信设备晶振,1ZZHAM26000AB0A 尺寸图

KDS轻薄型晶体,DSX1612S通信设备晶振,1ZZHAM26000AB0A

产品特点：

1612尺寸、厚度0.35mm、超小型超薄型超轻SMD石英晶振

高精度、高可靠性(面向通信用途的经年变化±1×10-6/年，±3×10-6/也可以支持5年)

可高密度安装

品牌	原厂代码	型号	尺寸	频率	负载/电压	精度	温度
KDS晶振	1TC250E65	DT-38	308	32.768k	12.5PF	+12/+28PPM
KDS晶振	1TC125JHNS001	DT-38	308	32.768KHZ	12.5PF	50PPM
KDS晶振	1TC125AFWS027	DT-38	308	32.768KHZ	12.5PF	5PPM
KDS晶振	1TC070DFNS012	DT-38	308	32.768KHZ	7PF	20PPM
KDS晶振		DT-38	308	32.768KHZ	12.5PF	200P
KDS晶振	1TJS060DJ4A739Q	DMX-26S	8038	32.768K	6PF	20PPM
KDS晶振	1ZZCAA24000BE0B	DSX211G	2016	24.000M	10PF	20PPM
KDS晶振	1ZZCAA27120BB0D	DSX211G	2016	27.12M	10PF	20PPM
KDS晶振	1ZZNAE48000ZZ0R	DSX211SH	2016	48.000M	7PF	20PPM
KDS晶振	1C707600CC1B	DSX530GA	5032	7.600M	10PF	30PPM
KDS晶振	1ZZNAE26000AB0J	DSX211SH	2016	26.000M	7PF	10PPM
KDS晶振	1ZCP37400AA0H	DSX211AL	2016	37.400M
KDS晶振	1ZZNAE38400AB0A	DSX211SH	2016	38.400M	10PF	10PPM
KDS晶振	1ZZHAM24000BB0B	DSX1612S	1612	24.000M
KDS晶振	1ZZHAM26000AB0A	DSX1612S	1612	26.000M
KDS晶振	1ZZCAA27120CD0A	DSX211G	2016	27.12M
KDS晶振	1ZZNAE38400AA0C	DSX211SH	2016	38.400M
KDS晶振	7AE01200A00	DSX221G	2520	12.000M	8PF
KDS晶振	1ZCB26000AB0R	DSX221G	2520	26.000M
KDS晶振	1ZCT24000BD0A	DSX320GE	3225	24.000M
KDS晶振	1XTV36864HBA	DSA321SCM	3225	36.864M
KDS晶振	1CG12288EE1C	DSX630G	6035	12.288M
KDS晶振	1ZNA16000AB0P	DSX221G	2520	16.000M	9PF	10ppm
KDS晶振	1ZNA32000BB0B	DSX221G	2520	32.000M	12PF	15ppm
KDS晶振	ZC13727	DSX221SH	2520	24.000M	10PF	30ppm
KDS晶振	1ZN326000AB0A	DSX221SH	2520	26.000M	7PF	10PPM
KDS晶振	1C208000BC0R	DSX321G	3225	8.000M	12PF	20PPM
KDS晶振	7AD00800A1C	DSX321G	3225	8.000M	12PF	20PPM
KDS晶振	1C208000CE0H	DSX321G	3225	8.000M	10PF	20PPM
KDS晶振	1C208000EE0BL	DSX321G	3225	8.000M	12PF	20PPM	40~125度
KDS晶振	1ZCM080000EE0A汽车	DSX320G	3225	8.000M	8PF	20PPM	40~85度
KDS晶振	1C208000EZ0G汽车	DSX321G	3225	8.000M	8PF	30PPM	40~85度
KDS晶振	1N210000EE0X	DSX321G	3225	10.000M	10PF
KDSCrystal	7AD01200A1R	DSX321G	3225	12.000M	8PF	20ppm
KDS晶振	1N212000BC0AK	DSX321G	3225	12.000M	10PF	20ppm
KDS晶振	1C213080CC0A	DSX321G	3225	13.080M	8PF
KDS晶振	1C232000ABOV	DSX321G	3225	32.000M	6PF	10PPM
KDS晶振	1N254000BB0M	DSX321G	3225	54.000M	19PF	15PPM
KDS晶振	1ZCM12000BC0A	DSX320G	3225	12.000M	8PF
KDS晶振	1C216000EE0AW	DSX321G	3225	16.000M	8PF	50PPM
KDS晶振	1N216000EE0BE	DSX321G	3225	16.000M	8PF	50PPM
KDS晶振	1C216000BF0B	DSX321G	3225	16.000M
KDS晶振	1C319200AA0A	DSX321G	3225	19.200M	8PF	10PPM
KDS晶振	1C220000AA0K	DSX321G	3225	20.000M
KDS晶振	1C224000BE0K	DSX321G	3225	24.000M
KDS晶振	1N225000BC0CT	DSX321G	3225	25.000M	7.5PF
KDS晶振	1N226000AA0G	DSX321G	3225	26.000M	12.5PF	10ppm
KDS晶振	1N226000AA0E	DSX321G	3225	26.000M	8.1PF	10PPM
KDS晶振	1C214745CE0E	DSX321G	3225	14.7456M
KDS晶振	1C224576AC0A	DSX321G	3225	24.576M
KDS晶振	1N226000AB0M	DSX321G	3225	26.000M	8PF	8PPM
KDS晶振	1N226000AB0J	DSX321G	3225	26.000M	11PF	10PPM
KDS晶振	1C226000BE0D	DSX321G	3225	26.000M
KDS晶振	1N227000AB0N	DSX321G	3225	27.000M
KDS晶振	1C233333BC0G	DSX321G	3225	33.333333M
KDS晶振	1N340000LA0B	DSX321G	3225	40.000M
KDS晶振	1C340000LA0A	DSX321G	3225	40.000M	8PF
KDS晶振	1C262400BK0A	DSX321G	3225	62.4M
KDS晶振	1N227000EE0L	DSX321G	3225	27.000M	9PF	50ppm
KDS晶振	1BASAMPLE	DSX321G	3225	27.000M	9PF	50ppm
KDS晶振	1C227000BBAH	DSX321G	3225	27.000M	11PF	12ppm
KDS晶振	1N227000BB0AK	DSX321G	3225	27.000M	11PF	12PPM
KDS晶振	1C228322EE0D	DSX321G	3225	28.322M	10PF	50PPM
KDS晶振	1N230000AB0C	DSX321G	3225	30.000M	10PF	30PPM
KDS晶振	1C338400AA0B	DSX321G	3225	38.400M	10PF	10PPM
KDS晶振	1C241600CDAA	DSX321G	3225	41.6M	10PF	30PPM
KDS晶振	1C254000CC0C	DSX321G	3225	54.000M	10PF	30PPM
KDS晶振	1N232000AA0N	DSX321G	3225	32.000M	12PF
KDS晶振	1N240000AB0J	DSX321G	3225	40.000M	15PF	15PPM	40~125度
KDS晶振	1C240000AB0G	DSX321G	3225	40.000M	10PF	10PPM
KDS晶振	X4S013000DA1H-W	HSX421S	4025	13.000M	10PF	20ppm
KDS晶振	X1H013000B81H	HSX531S	5032	13.000M	8PF	10ppm
KDS晶振	1C736864CC1A	DSX530GA	5032	36.864M	8PF	25PPM
KDS晶振	1HX12288CD1A	DSX840GA	8045	12.288M	20PF	30PPM
KDS晶振	1CX40000EE1O	DSX840GA	8045	40.000M	18PF	50ppm
KDS晶振	1CW04000KK3C	DSX151GAL	11.8*5.5	4.000M
KDS晶振	1CW08192EK3A	DSX151GAL	11.8*5.5	8.192M	15PF	20ppm
KDS晶振	CW08000EK3B	DSX151GAL	11.8*5.5	8.000M
