C2KC20-32.768-15-3.3V,2520mm,C2K,32.768KHz,ITTI晶振，香港晶振，ITTI晶振，型号：C2K系列晶振，编码为：C2KC20-32.768-15-3.3V，精度：±20ppm，频率为：32.768KHz，负载：15pF，电压：3.3V，是一款小体积晶振，尺寸：2.5x2.0mm封装，四脚贴片晶振，有源晶振，SMD晶振，石英晶振，石英晶体振荡器，石英贴片晶振，工作温度范围：-40℃至+85℃。具有超小型，轻薄型，高性能，高品质，高质量，耐热及耐环境特点。32.768K贴片晶振，被广泛应用于：移动电话晶振，便捷式电脑晶振，数码相机晶振，无线局域网晶振，通讯设备晶振，钟表电子，仪器仪表设备，数字显示等应用。

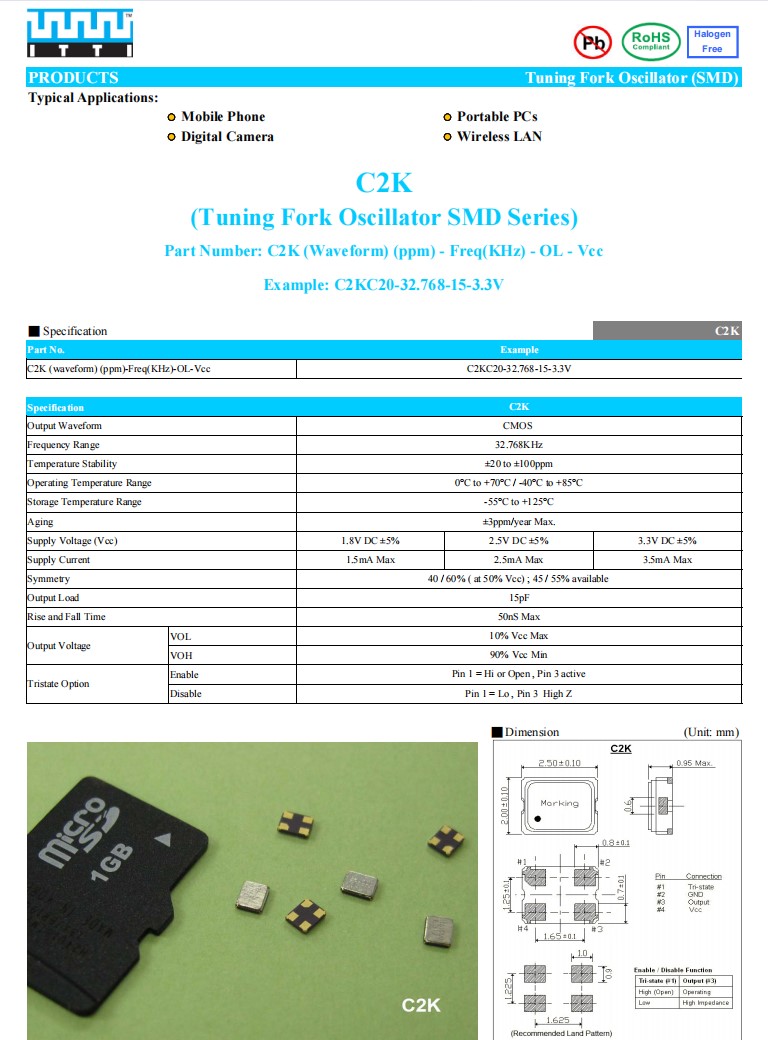

C2KC20-32.768-15-3.3V,2520mm,C2K,32.768KHz,ITTI晶振,参数表
| Output Waveform
|
CMOS
|
| Frequency Range
|
32.768KHz
|
| Temperature Stability
|
±20 to ±100ppm
|
| Operating Temperature Range
|
0°C to +70°C / -40°C to +85°C
|
| Storage Temperature Range
|
-55°C to +125°C
|
| Aging
|
±3ppm/year Max.
|
| Supply Voltage (Vcc)
|
1.8V DC ±5%
|
2.5V DC ±5%
|
3.3V DC ±5%
|
| Supply Current
|
1.5mA Max
|
2.5mA Max
|
3.5mA Max
|
| Symmetry
|
40 / 60% ( at 50% Vcc) ; 45 / 55% available
|
| Output Load
|
15pF
|
| Rise and Fall Time
|
50nS Max
|
| Output Voltage
|
VOL
|
10% Vcc Max
|
| VOH
|
90% Vcc Min
|
| Tristate Option
|
Enable
|
Pin 1 = Hi or Open , Pin 3 active
|
| Disable
|
Pin 1 = Lo , Pin 3 High Z
|
C2KC20-32.768-15-3.3V,2520mm,C2K,32.768KHz,ITTI晶振,尺寸图
