ILSI石英晶体谐振器,ILCX04-FB1F18-26.000,USB应用晶振，美国进口晶振，ILSI艾尔西晶振，型号：ILCX04，编码为：ILCX04-FB1F18-26.000，频率：26.000MHz，小体积晶振尺寸：7.0x5.0mm封装，四脚贴片晶振，无源晶振，石英晶振，SMD晶振，无铅晶振，石英晶体谐振器，工作温度范围：-20℃至+70℃，具有超小型，轻薄型，高精度，高性能，高品质，耐热及耐环境特点。被广泛应用于：通讯设备，无线网络，仪器仪表设备，蓝牙模块，汽车电子，服务器，存储，光纤通道，物联网，智能家居，安防设备，医疗设备等应用。

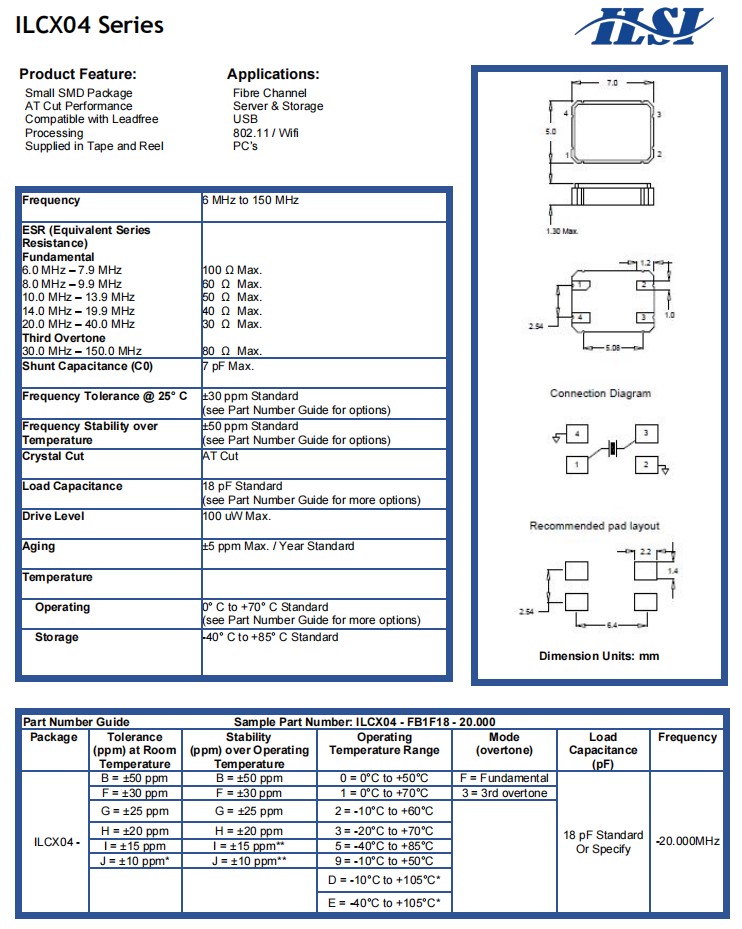

ILSI石英晶体谐振器,ILCX04-FB1F18-26.000,USB应用晶振,参数表
| Frequency
|
26.000 MHz
|
ESR (Equivalent Series
Resistance)
Fundamental
6.0 MHz – 7.9 MHz
8.0 MHz – 9.9 MHz
10.0 MHz – 13.9 MHz
14.0 MHz – 19.9 MHz
20.0 MHz – 40.0 MHz
Third Overtone
30.0 MHz – 150.0 MHz
|
100 Ω Max.
60 Ω Max.
50 Ω Max.
40 Ω Max.
30 Ω Max.
80 Ω Max.
|
| Shunt Capacitance (C0)
|
7 pF Max.
|
| Frequency Tolerance @ 25° C
|
±30 ppm Standard
(see Part Number Guide for options)
|
Frequency Stability over
Temperature
|
±50 ppm Standard
(see Part Number Guide for options)
|
| Crystal Cut
|
AT Cut
|
| Load Capacitance
|
18 pF Standard
(see Part Number Guide for more options)
|
| Drive Level
|
100 uW Max.
|
| Aging
|
±5 ppm Max. / Year Standard
|
| Temperature
|
|
| Operating
|
0° C to +70° C Standard
(see Part Number Guide for more options)
|
| Storage
|
-40° C to +85° C Standard
|

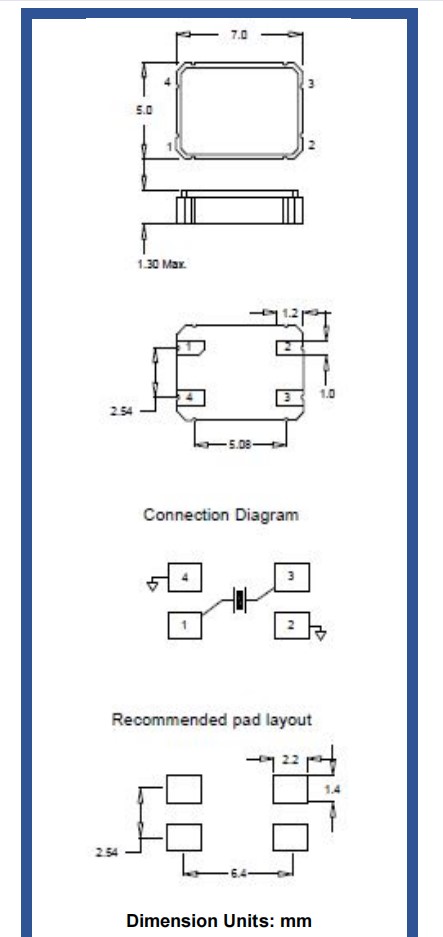

ILSI石英晶体谐振器,ILCX04-FB1F18-26.000,USB应用晶振,尺寸图
