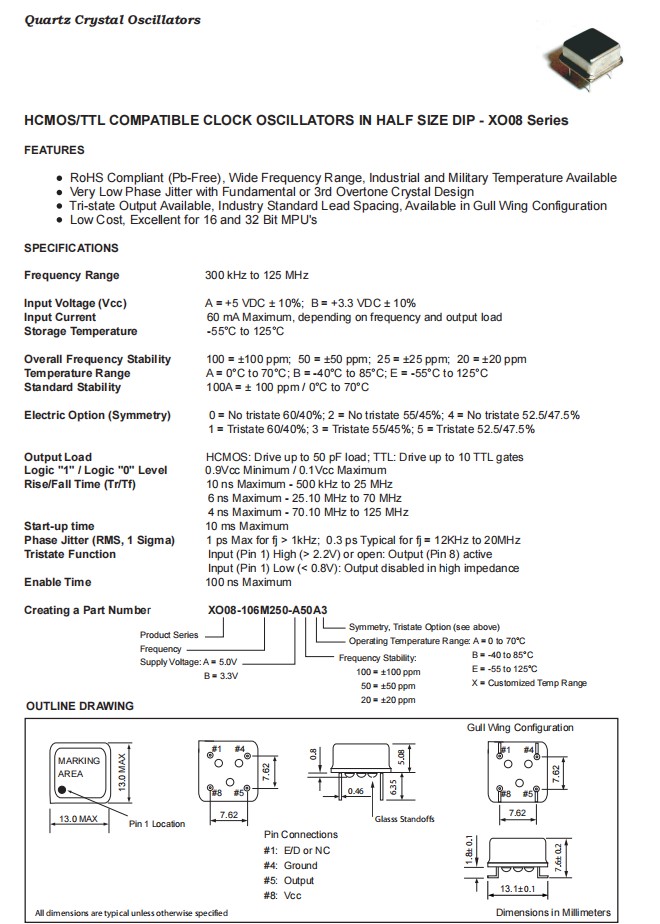

Frequency Range 106.250MHz
|
|
Input Voltage (Vcc) A = +5 VDC ± 10%; B = +3.3 VDC ± 10%
|
|
Input Current 60 mA Maximum, depending on frequency and output load
|
|
Storage Temperature -55°C to 125°C
|
|
Overall Frequency Stability 100 = ±100 ppm; 50 = ±50 ppm; 25 = ±25 ppm; 20 = ±20 ppm
|
|
Temperature Range A = 0°C to 70°C; B = -40°C to 85°C; E = -55°C to 125°C
|
|
Standard Stability 100A = ± 100 ppm / 0°C to 70°C
|
|
Electric Option (Symmetry) 0 = No tristate 60/40%; 2 = No tristate 55/45%; 4 = No tristate 52.5/47.5%
|
|
1 = Tristate 60/40%; 3 = Tristate 55/45%; 5 = Tristate 52.5/47.5%
|
|
Output Load HCMOS: Drive up to 50 pF load; TTL: Drive up to 10 TTL gates
|
|
Logic "1" / Logic "0" Level 0.9Vcc Minimum / 0.1Vcc Maximum
|
|
Rise/Fall Time (Tr/Tf) 10 ns Maximum - 500 kHz to 25 MHz
|
|
6 ns Maximum - 25.10 MHz to 70 MHz
|
|
4 ns Maximum - 70.10 MHz to 125 MHz
|
|
Start-up time 10 ms Maximum
|
|
Phase Jitter (RMS, 1 Sigma) 1 ps Max for fj > 1kHz; 0.3 ps Typical for fj = 12KHz to 20MHz
|
|

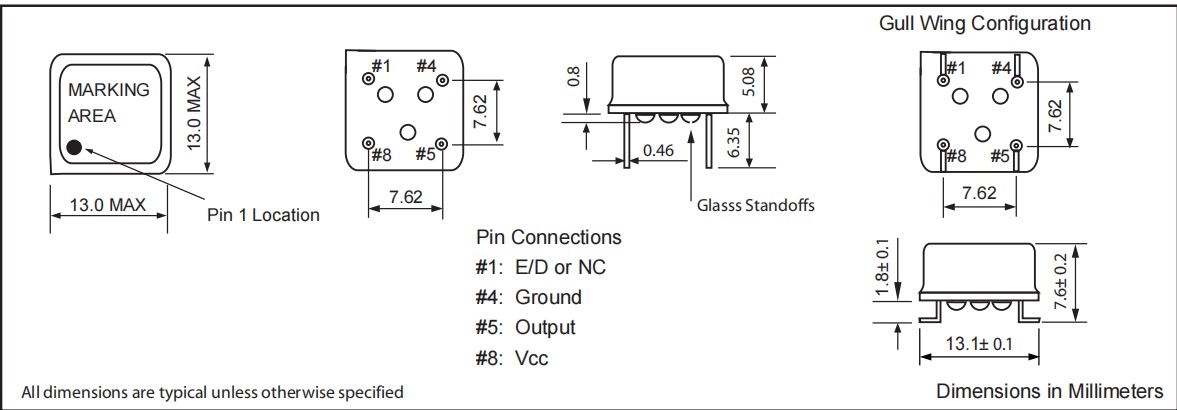

Tristate Function Input (Pin 1) High (> 2.2V) or open: Output (Pin 8) active
|
|
Input (Pin 1) Low (< 0.8V): Output disabled in high impedance
|
|
Enable Time 100 ns Maximum
|
